Fusion Catamarans produce the easily driven Fusion 40 in either a Power Boat or Sail Boat configuration. The Fusion Power Catamaran is designed to satisfy the Charter industry requirements, yet provide a highly economical vessel for long distance Coastal Cruising.
Technical Specifications Fusion Sail Catamaran
Download Specifications (PDF)
| LOA |
12.2mts / 40ft |
| BOA |
7.2 mts / 23’4” |
| Draft |
800mm / 32” |
| Bridgedeck |
800mm / 32” |
| Fuel |
380lts / 100 gals |
| Water |
800lts / 212 gals |
| Mainsail |
64sqmts / 688 sq ft |
| Jib |
24.5 sqmts / 264 sq ft |
| Spinnaker |
82sqmts / 883 sq ft |
| Engines |
2 x YM30 Yanmars |
| Shipping |
2 x 40ft containers |
Technical Specifications Fusion Power Catamaran
| LOA |
12.2mts / 40ft |
| BOA |
7.2 mts / 23’4” |
| Draft |
800mm / 35.43” |
| Bridgedeck |
900mm / 32” |
| Fuel |
940lts / 248 gals |
| Water |
600lts / 158 gals |
| Engines |
2 x (150/180/220/260)hp Yanmars |
| Shipping |
3 x 40ft containers |
|

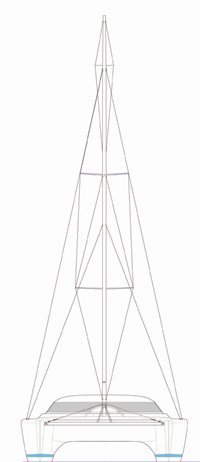

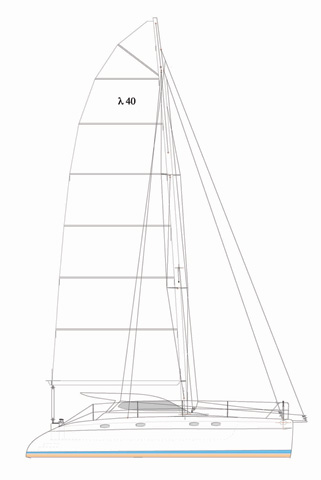

Click images below to enlarge
|
